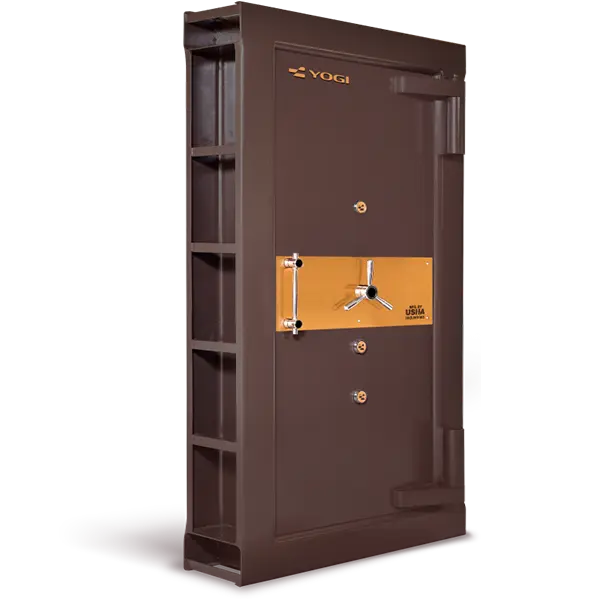

HEAVY DUTY STRONG ROOM DOORS
84″H x 42″W
Yogi has been in the business of manufacturing premium quality fire & burglar resistant strong room doors for over 40 years.
We are qualified to understand the need to protect your valuables like jewelry, passports and important documents, which is why we offer strong room doors that provide fire protection as well as deter theft.
We manufacture Strong Room Door as per BIS requirements and with a one year warranty, so you can rest assured that your valuables are protected.
Overall Size with Frame
mm: 2286H x 1219W
Overall Size without Frame
mm: 1981H x 914W
Weight
Starting from 800kg
Frame Size: 84″H x 42″W Door Size : 72″H x 30″W Heavy Duty C Type Frame Designesd As per ISI and BIS Certification
NOTE: All the sizes are in mm.
| Recommended Wall Thickness | 230-310 |
|---|---|
| Overall Size (H x W) with frame | 2286H x 1219W |
| Overall Size (H x W) without frame | 1981H x 914W |
| Door Swing | 1045 |
| Weight | Starting from 800kg |
| Grill Gate Swing | 1040 |
| Width over Door Frame | 2133 |
| Clear Opening, Door Opens at 180° | 838 |
| Clear Opening, Door Opens at 90° | 685 |
| Wall Opening | 1524 |
| Thickness of Door | 205 |
| Thickness with Grill Gate | 280 |
| Weight without Packing | 1200 kg |
| Weight with Packing | 1260 kg |
Key Specifications
Type of Resistance
Drill, Gas Cutting, Fire, Burglar
Lock Type
Key / Mechanical Lock, Combination Lock
Valuables to Protect
Jewellery, Documents, Cash, etc
